Especificaciones

Característica funcional

  • Single-fiber access, provides internet, CATV, WIFI multiple service
  • In compliant with ITU – T G. 984 and IEEE802.3ah standard
  • Support ONU auto-discovery/Link detection/remote upgrade of software
  • Support VLAN transparent, tag configuration
  • Support multicast function
  • Support DHCP/Static/PPPOE internet mode
  • Support port-binding
  • Support data encryption and decryptionfunction
  • Support Dynamic Bandwidth Allocation(DBA)
  • Support MAC filter and URL access control
  • Support remote CATV port management
  • Support power-off alarm function ,easy for linkproblem detection
  • Specialized design for systembreakdownprevention to maintain stable system
  • EMS network management based on SNMP ,convenient for maintenance

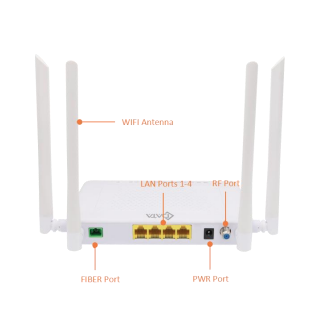

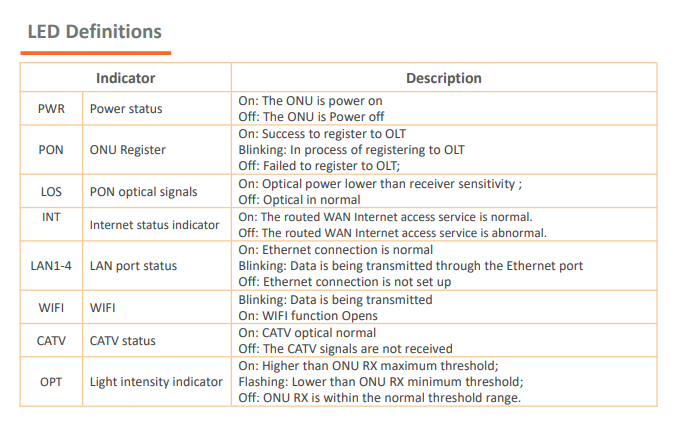

Interfaz del producto y definiciones de LED

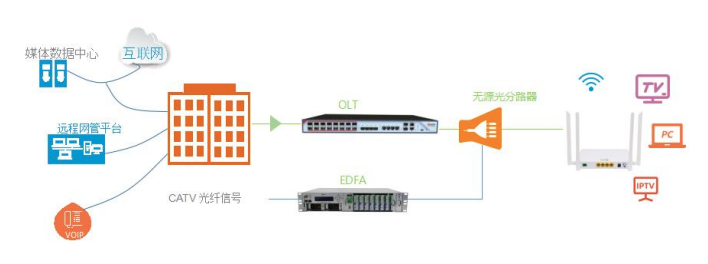

Application

  • Typical Solution：FTTH
  • Typical Business：Internet, CATV, Wi-Fi

Hardware

GPON/EPON Port

  • Single mode single fiber
  • GPON：FSAN G.984.2 standard,Class B+
  • EPON：1000BASE-PX20+ symmetric
  • GPON：2.488Gbps/1.244Gbps downstream/upstream
  • EPON：1.25Gbps downstream/upstream
  • Wavelength : Transmit: 1310nm Receiver: 1490nm
  • Receiving sensitivity : GPON：-28dBm EPON：-27dBm
  • Saturated power : GPON：-8dBm EPON：-3dBm
  • Transmitting power : GPON：0.5～5dBm EPON:0～4dBm

User Port(LAN)

  • RJ-45 connector
  • 4*10/100/1000 Mbps adaptive Ethernet port
  • Full/half duplex
  • Auto MDI/MDI-X

WIFI performance parameters

  • IEEE802.11b/g/n(2.4G)
  • IEEE802.11a/n/ac(5G)
  • Max rate: 300M(2.4G)
  • Max rate: 867Mbps(5G)
  • MAX TX power 2.4G:17dBm
  • MAX TX power 5G:17dBm

Dimension and Weight

  • Item Dimension
  • 103mm(L) x 56mm(W) x 115mm(H)
  • Item weight：0.243kg

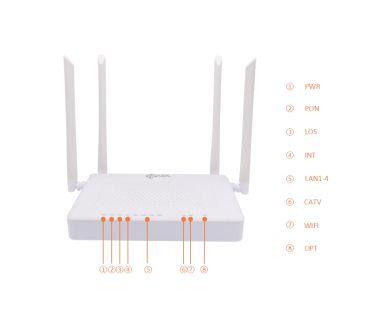

Indicators

  • PWR/PON/LOS/INT/LAN1-4/CATV/WIFI/OPT

CATV（Input /Output port）

  • Wavelength: 1550nm
  • Input optical power: -18dBm～0dBm(with AGC)
  • RF frequency: 47MHz~1000MHz
  • RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)
  • RF output return loss: >12dB(with AGC)
  • RF impedance: 75Ω

Environmental Specifications

  • Operating temperature: 0 to 40ºC
  • Storage temperature: -40 to 85ºC
  • Operating humidity: 10% to 90%(Non-condensing)

Power

  • External 12V/1A DC power supply adapter
  • Power consumption: <8.4W

Software

Management

  • EPON :OAM / WEB / TR069 / Telnet
  • GPON:OMCI / WEB / TR069 / Telnet

L3

  • IPv4/IPv6 Dual Stack
  • NAT
  • DHCP client/server
  • PPPOE client/ Pass through
  • Static and dynamic routing

Switch

  • MAC address learning
  • MAC address learning account limit
  • Port flow control
  • Broadcast storm suppression
  • VLAN transparent/tag
  • Port-binding

Multicast

  • IGMP V2
  • IGMP VLAN
  • IGMP transparent/Snooping/Proxy

Security

  • Firewall
  • MAC address/URL filter
  • Remote WEB/Telnet

Register

  • Auto-discovery/Link detection/Remote upgrade software
  • Auto/MAC/SN/LOID+Password authentication
